Produktinformasjon

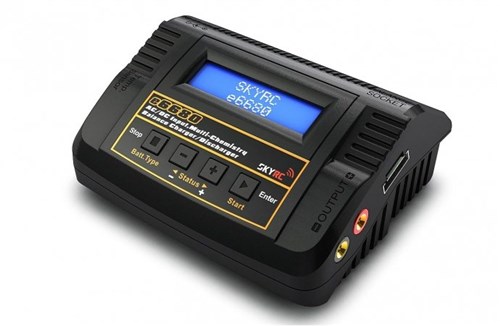

Enkel og god lader som dekker de aller fleste ladebehov!
Laderen har en ladestyrke på 80W kontra 50W som de fleste lignende laderne har. Det vil si at denne laderen er hele 60% kraftigere enn en 50W-lader.
Dette er en god multilader som kan lade LiPo, LiFe, LiIon, NiHm, NiCd og Pb batterier. Laderen kan bruke både 12V og 220V kilde inn, så denne laderen vil kunne brukes både i felten på ett bilbatteri og på hobbyrommet plugget rett i veggen. Laderen har max ladestyrke på 80W, så ett 3cell LiPo kan da lades på ca 6A. Ett 6cell LiPo på 3,2A. Max ladestyrke er 6A med begrensning på 80watt.
Det følger med balanseringskontakt for XH, ledninger og plugger for tilkobling til 220/12V. Skal man balansere LiPo-batterier med annen type balanseringsplugg kan man bruke iMax balanseringsledning/brett. Se under for anbefalte balanseringsbrett og ladekabler.
Anbefalt tilbehør
NYHET!
GRATIS FRAKT*
* Dette produktet kvalifiserer til gratis frakt. Andre varer i samme ordre vil da også få gratis frakt.
Unntak er varer med egne spesifike fraktkriterier.
kr 119,-
0| 0,-
Uten din rabatt kr 119,-
3|173|523
NYHET!
GRATIS FRAKT*
* Dette produktet kvalifiserer til gratis frakt. Andre varer i samme ordre vil da også få gratis frakt.
Unntak er varer med egne spesifike fraktkriterier.
kr 135,-
0| 0,-
Uten din rabatt kr 135,-
3|398|523
NYHET!
GRATIS FRAKT*
* Dette produktet kvalifiserer til gratis frakt. Andre varer i samme ordre vil da også få gratis frakt.
Unntak er varer med egne spesifike fraktkriterier.
kr 129,-
0| 0,-
Uten din rabatt kr 129,-
3|8|205
Viktig info!
Husk at ved lading av lipo batterier skal man for å oppnå full balansering av pakken kople til begge kontaktene fra batteriet og velge LiPo Balance programmet, ikke LiPo Charge.
Specifications
AC Input: 100-240VoltDC Input: 11-18VoltCircuit Power: Max. Charge Power 80WMax. Discharge Power 10WCharge Current Range: 0.1-6.0ADischarge Current Range: 0.1-2.0ACurrent Drain For Balancing LiPo: 300mA/cellNiCd/NiMH Battery Cell Count: 1-15CellsLiPo/LiFe/Lilon Cell Count: 1-6CellsPb battery voltage: 2-20VNet Weight: 490gDimension: 135x112x60.9mm
Optimized operating software
e6680 features the so-called AUTO function that set the feeding current during the process of charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which may lead to an explosion due to the users fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two way linkage and communication, to achieve the maximum safety and minimize the trouble. All the settings can be configured by users!
Internal independent lithium battery balancer
e6680 employs an individual-cell-voltage balancer. It isn?t necessary to connect an external balancer for balance charging.
Balancing individual cells battery discharging
During the process of discharging, e6680 can monitor and balance each cell of the battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.
Adaptable to various type of lithium battery
e6680 is adaptable to various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries.
Fast and storage mode of lithium battery
Purposes to charge Lithium battery varies, ?fast? charge reduce the duration of charging, whereas ?store? state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery.
Maximum safety
Delta-peak sensitivity: The automatic charge termination program based on the principle of the Delta-peak voltage detection. When the batterys voltage exceeds the threshold, the process will be terminated automatically.
Automatic charging current limit
You can set up the upper limit of the charging current when charging your NiCd or NiMH battery; it is useful for the NiMH battery of low impedance and capacity in the AUTO charging mode.
Capacity limit
The charging capacity is always calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.
Temperature threshold*
The battery?s internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated. * This function is available by connecting optional temperature probe, which is not included in our package.
Processing time limit:
You can also limit the maximum process time to avoid any possible defect.
Input power monitoring
To protect the car battery used as DC input power from being damaged, its voltage keeps being monitored. If it drops below the lower limit, the process will be ended automatically.
Data store/load
The maximum five batteries? data can be stored for users? convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting.
Cyclic charging/discharging
1 to 5 cyclic and continuous process of charge>discharge or discharge>charge is operable for battery refreshing and Balancing to stimulate the batterys activity.
