Produktinformasjon

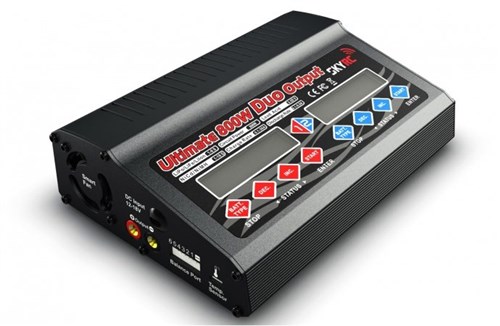

Kraftig lader fra SkyRCpå hele 2 x 400W. Man kan si at laderen i realiteten er 2stk 400W-ladere som er sveiset sammen. Den har alså to separate ladeenheter innebygget, to display og to utganger, men man slipper unna med bare en tilkobling til powersupply/batteri. Denne laderen klarer i motsetning til mange andre kraftige ladere, å yte sine fulle 800W selv ved en innspenning på 12-14V.
Laderen har maks ladestyrke på 20A, ett 6cell LiPo kan man med denne laderen lade på ca 17A.
Dette følger med:
1 x Lader 400W x 22 x XH-balanseringsbrett1 x ladeledning med krokodilleklemmer2 x ladeledninger uten plugg der man kan lodde på egne ladeplugger.
Ønskes andre balanseringsbrett kan det kjøpes utenom, se under tilbehør. Det ligger også diverse alternative ladekabler som man kan kjøpe i tillegg. Operating voltage range: DC 12.0-18.0 Volt Max. Charge power 2x400Watts Max. Discharge power 2x25Watts Charge current range: 0.1-20.0A Discharge current range: 0.1-5.0A Current drain for balancing Li-Po/Ion/Fe: 300mA/cell Li-ion/Fe/Polymer cell count: 1-6cells NiCd/NiMH battery cell count: 1-15cells Pb battery voltage: 2-20V
Anbefalt tilbehør
NYHET!
GRATIS FRAKT*
* Dette produktet kvalifiserer til gratis frakt. Andre varer i samme ordre vil da også få gratis frakt.
Unntak er varer med egne spesifike fraktkriterier.
kr 119,-
0| 0,-
Uten din rabatt kr 119,-
3|172|523
NYHET!
GRATIS FRAKT*
* Dette produktet kvalifiserer til gratis frakt. Andre varer i samme ordre vil da også få gratis frakt.
Unntak er varer med egne spesifike fraktkriterier.
kr 135,-
0| 0,-
Uten din rabatt kr 135,-
3|397|523
Optimized operating software
Ultimate 400W×2 features the so-called AUTO function that set the feeding current during the process of charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which may lead to an explosion due to the users fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two way linkage and communication, to achieve the maximum safety and minimize the trouble. All the settings can be configured by users!
Internal independent lithium battery balancer
Ultimate 400W×2 employs an individual-cell-voltage balancer. It isn?t necessary to connect an external balancer for balance charging.
Balancing individual cells battery discharging
During the process of discharging, Ultimate 400W×2 can monitor and balance each cell of the battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.
Adaptable to various type of lithium battery
Ultimate 400W×2 is adaptable to various types of lithium batteries, such as Li-Ion, LiPo and the new LiFe series of batteries.
Fast and storage mode of lithium battery
Purposes to charge Lithium battery varies, fast charge reduce the duration of charging, whereas store state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery.
Maximum safety
Delta-peak sensitivity: The automatic charge termination program based on the principle of the Delta-peak voltage detection. When the batterys voltage exceeds the threshold, the process will be terminated automatically.
Automatic charging current limit
You can set up the upper limit of the charging current when charging your NiCd or NiMH battery; it is useful for the NiMH battery of low impedance and capacity in the AUTO charging mode.
Capacity limit
The charging capacity is always calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.
Temperature threshold
The batteries internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated. This function is available by connecting temperature probe (not included in the package )
Processing time limit:
You can also limit the maximum process time to avoid any possible defect.
Data store/load
For user?s convenience, it can store maximum 10 data of different batteries. You can establish the data contains program setting of the battery to charge or discharge. These data can be called back at any time you need and the process can be executed without program setting.
Cyclic charging/discharging
1 to 5 cyclic and continuous process of charge>discharge or discharge>charge is operable for battery refreshing and balancing to stimulate the batteries activity
