Produktinformasjon

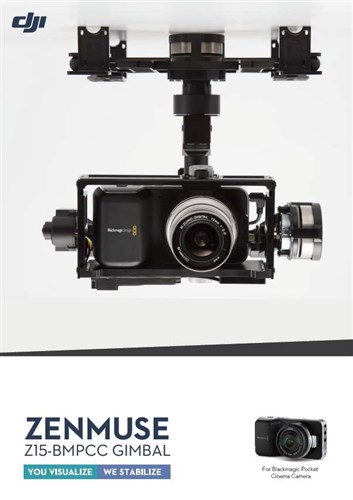

Zenmuse kvalitet for Black Magic Pocket Cinema Cam - passer til S800 EVO og S1000. Klargjort for Lightbridge!
| General | |
| Built in functions | 3 working modes (orientation locked, non-orientation lock, FPV Mode) |
| Built-in independent IMU module |
| DJI gimbal special servos drive module |
| HDMI- AV module |
| Wireless video transmission supported |
| Camera shutter control supported |
| Wide range voltage input supported |
| S-Bus/PPM Receiver supported |
| Peripheral | |
| Supported Camera | Blackmagic Pocket Cinema Camera |
| Supported Lens Currently | Olympus M.ZUIKO DIGITAL ED 12mm f2.0 |
| GCU Input Power | 4S~12S LiPo (Recommend 6S if with S800) |
| Control Requirement | Four spare receiver channels at least |
| Assistant Software System Requirement | Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit) |
| Mechanical& Electrical Characteristics | |
| Working Current | @25V, Static 200mA, Dynamic 400mA, Locked-rotor 4A |
| Operating Temperature | -10°C ~ 50°C |
| Weight | 1.26Kg |
| Dimensions | 220mm × 200mm × 223mm |
| GCU BEC Output | 10A@12V |
| GCU Wireless Video Transmission Power | 1A @12V |
| GCU Weight | 63g |
| GCU Dimensions | 64.2 mm ×34.1mm ×19.5mm |
| Working performance | |
| Load Weight (Reference Value) | 521g(BMPCC including storage card, battery, lens_ |
| Controlled Angle Accuracy | ±0.01° |
| Maximum Controlled Rotation Speed | Pan/Tilt axis: ±130°/s, Roll axis: ±30°/s |
| Controlled Rotation Range | Pan/Tilt axis control: ±360° continuous rotation, Roll axis control: ±40° |
Deler
c
|
1182
NYHET!
GRATIS FRAKT*
* Dette produktet kvalifiserer til gratis frakt. Andre varer i samme ordre vil da også få gratis frakt.
Unntak er varer med egne spesifike fraktkriterier.
DJI Z15-BMPCC Part34 - Camera Mounting Unit
kr 164,-
595|595,-
Uten din rabatt kr 164,-
3|2|34
|
