Produktinformasjon
The OpenBuilds Solid V Wheel is a strong wheel that resists deflection due to its solid nature.
The OpenBuilds Solid V Wheel is a strong wheel that resists deflection due to its solid nature.This wheel style was produced for two reasons.- First is for builds where heavier loads are required and less compression in the delrin is desired. Many of these wheels could be added to a gantry to allow an even distribution of the load across them. - Second is for improved performance of the belt and pinion system to give the belt a flat surface to ride on.Each wheel is carefully milled for consistent high precision and tolerance.Each Wheel Kit Includes:
(1) OpenBuilds Solid V Wheel
(2) Ball Bearings - 625 2RS
(2) 5mm Precision Shim
(1) Lock Nut with Nylon Insert
Also, be sure to grab the screws and spacers of your choice here:

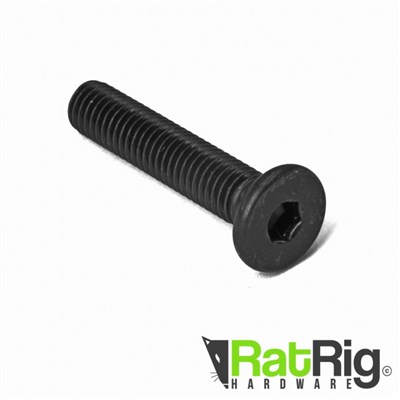

Low Profile Screw (25mm for use with 1/8" Plate and 30mm for 1/4" Plates)
Aluminum Spacers (choose between 6mm and 1/4")
Eccentric Spacers (choose between 6mm and 1/4")
Note: Usually for a standard gantry plate you will need two Eccentric Spacers as well as two Aluminum Spacers
Part Details
Material - Delrin (black)
Dimensions 23.90 OD x 16 ID x 10.23 thick
Rockwell Hardness M80
Compressive Strengh 63Mpa
